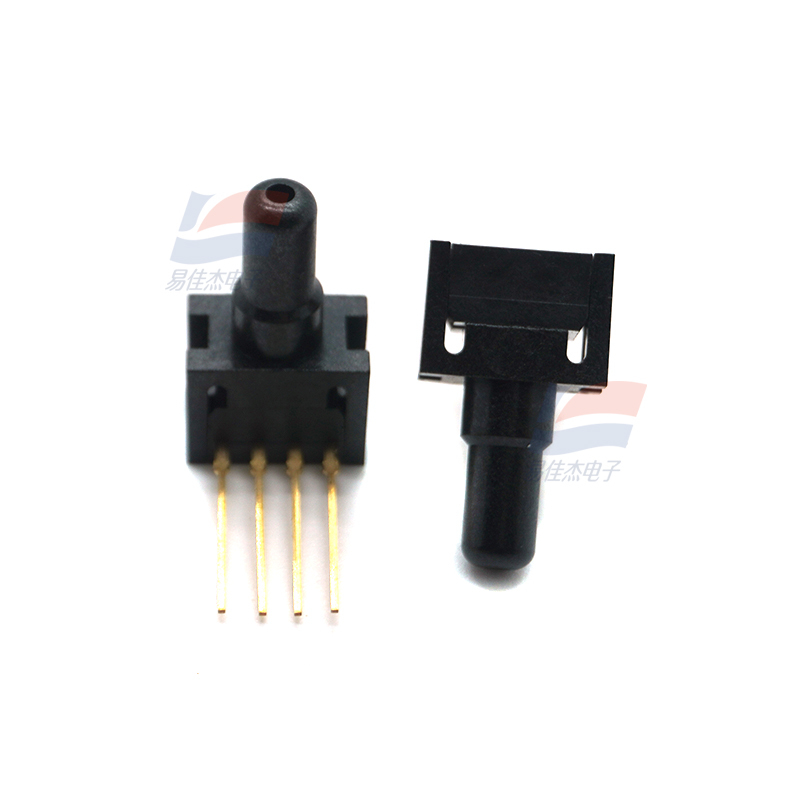

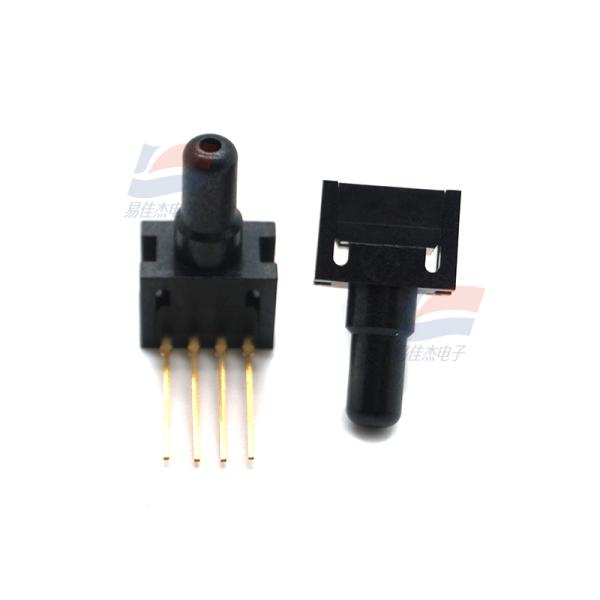

26PCDFA6G Board Mount Pressure Sensors Through Hole SIP4 Packing

Brand Name : YJJ

Model Number : 26PCDFA6G

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000PCS/Month

Delivery Time : 3-5Workingdays

Packaging Details : Standard Box

Pressure Type : Vacuum, Gauge

Operating Pressure : 30 psi

Accuracy : 0.4 %

Output Type : Analog

Contact Now

26PCDFA6G Board Mount Pressure Sensors Through Hole SIP4 Packing

Miniature Low Pressure Sensors 26PC Series, Compensated/Unamplified 1 psi to 250 psi

The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.

Mounting Style	Through Hole
Operating Supply Voltage	10 V
Port Type	Single Axial Barbless
Package / Case	SIP-4
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 85℃
Port Size	0.2 in
Supply Voltage - Max	16 V
Unit Weight	0.070548 oz

26PCDFA6G Board Mount Pressure Sensors Through Hole SIP4 Packing
